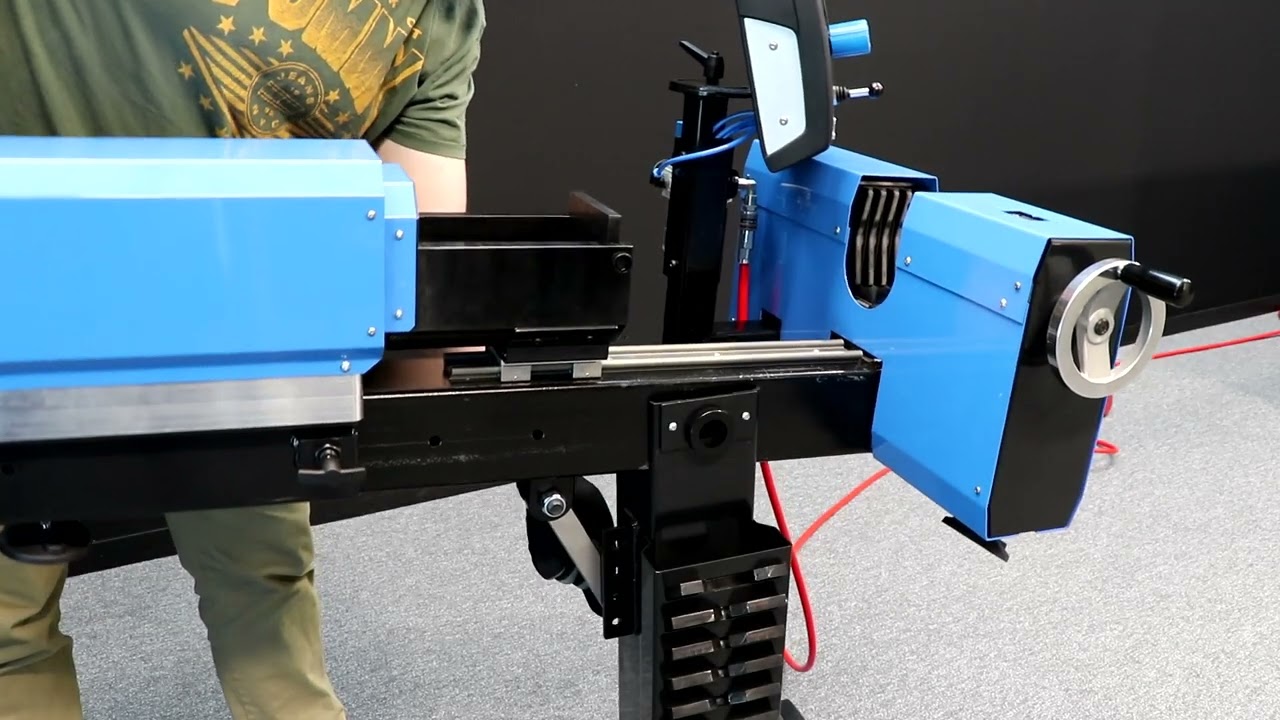

IM2 is a ergonomic fitting pre-assembling machine for hoses up to 3” and
all elbow angles.
IM2 makes fitting assembling quick and easy.
The stand has multiple adjustable feeding angles to handle the toughest hoses.
| Standard Features | |
|---|---|
|
Standard tool set Pushing pressure adjustment Clamping pressure adjustment Adjustable centering position with scale Adjustable hose feeding angle (requires stand) Stand |
|
| Standard Tool Set for IM2 | |
|---|---|
| ToolNo | Hose size (inches) |
| 715598 | 5/16 |
| 715593 | 1/4 |
| 715597 | 3/8 |
| 715592 | 1/2 |
| 715516 | 5/8 |
| 715596 | 3/4 |
| 715594 | 1 |
| 715591 | 1 1/4 |
| 715590 | 1 1/2 |
| 715595 | 2 |
| 718446 | 2 1/2 |
| 718447 | 3 |
Technical Data
| TECHNICAL DATA | |
|---|---|
| Capacity (Inches) | 3 |
| Max. Hose outer diameter (mm) | 120 |
| Max. Inserting force (KN) | 6.2 |
| Max. Clamping force (KN) | 4.0 |
| DIMENSIONS (LxWxH) | |
| IM2 table-model (mm) | 1017x733X649 |
| IM2 with stand (mm) | 1017x733x1280 |
| WEIGHT (KG/LBS) | |
| IM2 table-model | 105/231 |
| IM2 with stand | 140/308 |
